A system that inspects the appearance of an electrode after pressing the electrode fabric during battery assembly.
Optical System
- CAMERA : AREA CAMERA
- Resolution : 12M, 25M
- LIGHT : BAR LIGHT, BACK LIGHT
- I/O Card: Input 16CH, Output 16CH
- PC OS: Windows10
Characteristic
- Ease of adding a production model
- Intuitive UI makes it easy for anyone to operate

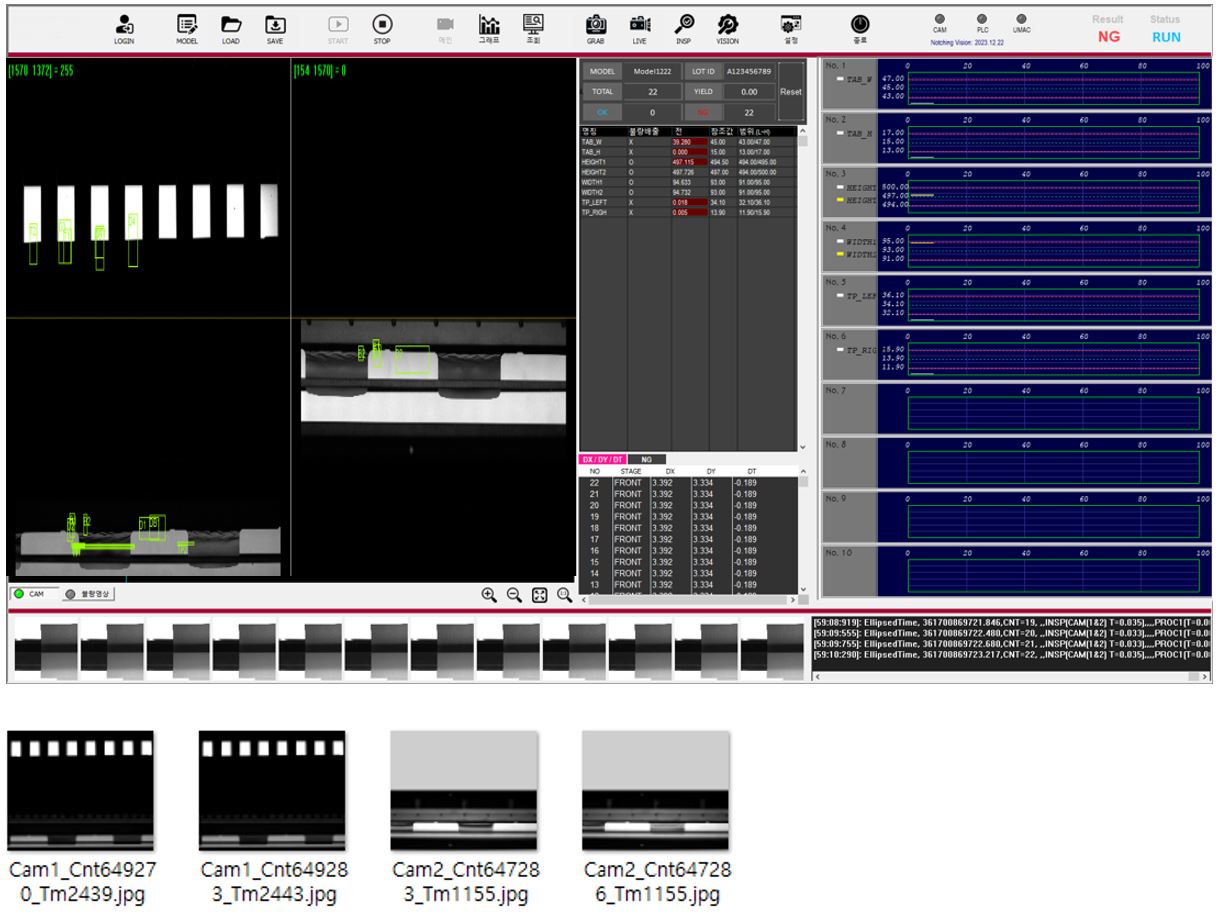

- Real-time image monitoring is possible
- Real-time graph output enables you to judge product trends
- OK, NG images can be saved and re-examined
- Store measured values DATA and output to Excel file
- Interworking with PLC
