Position of the battery assembly process line within the battery assembly process line Measure the distance between the electrodes to find the optimal cutting location Systems that automatically check and control systems
Optical System
- CAMERA : AREA CAMERA
- Resolution : 5M
- LIGHT : COAXIAL LIGHT, BACK LIGHT
- I/O Card : Input 16CH, Output 16CH
- PC OS : Windows10
Characteristic
- Ease of adding a production model
- Intuitive UI makes it easy for anyone to operate

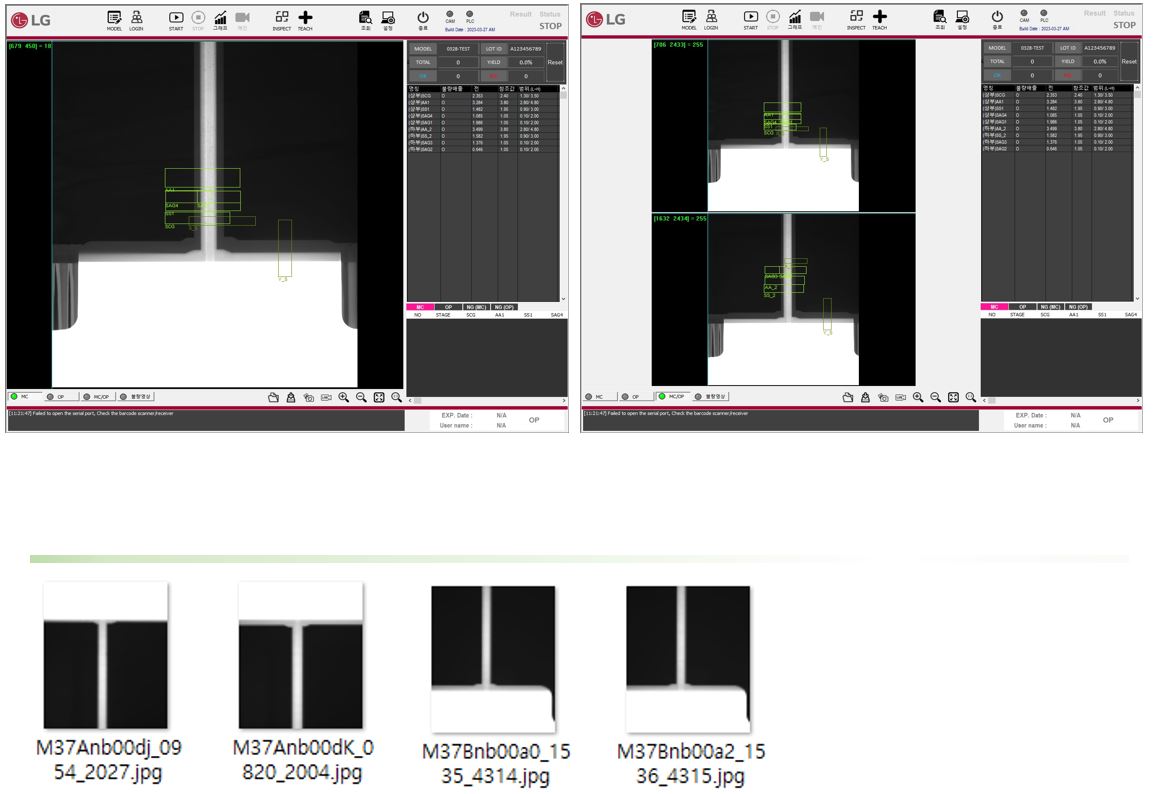

- Real-time image monitoring is possible
- Real-time graph output enables you to judge product trends
- OK, NG images can be saved and re-examined
- Store measured values DATA and output to Excel file
- Interworking with PLC
