During the battery assembly process, paint with poor appearance of fine waveform, paint of foreign substances, It is a system that detects scratches.
Optical System
- CAMERA : LINE SCAN CAMERA
- Resolution : 8K
- LIGHT : BAR LIGHT
- I/O Card : Input 16CH, Output 16CH
- PC OS : Windows10
Characteristic
- Ease of adding a production model
- Intuitive UI makes it easy for anyone to operate

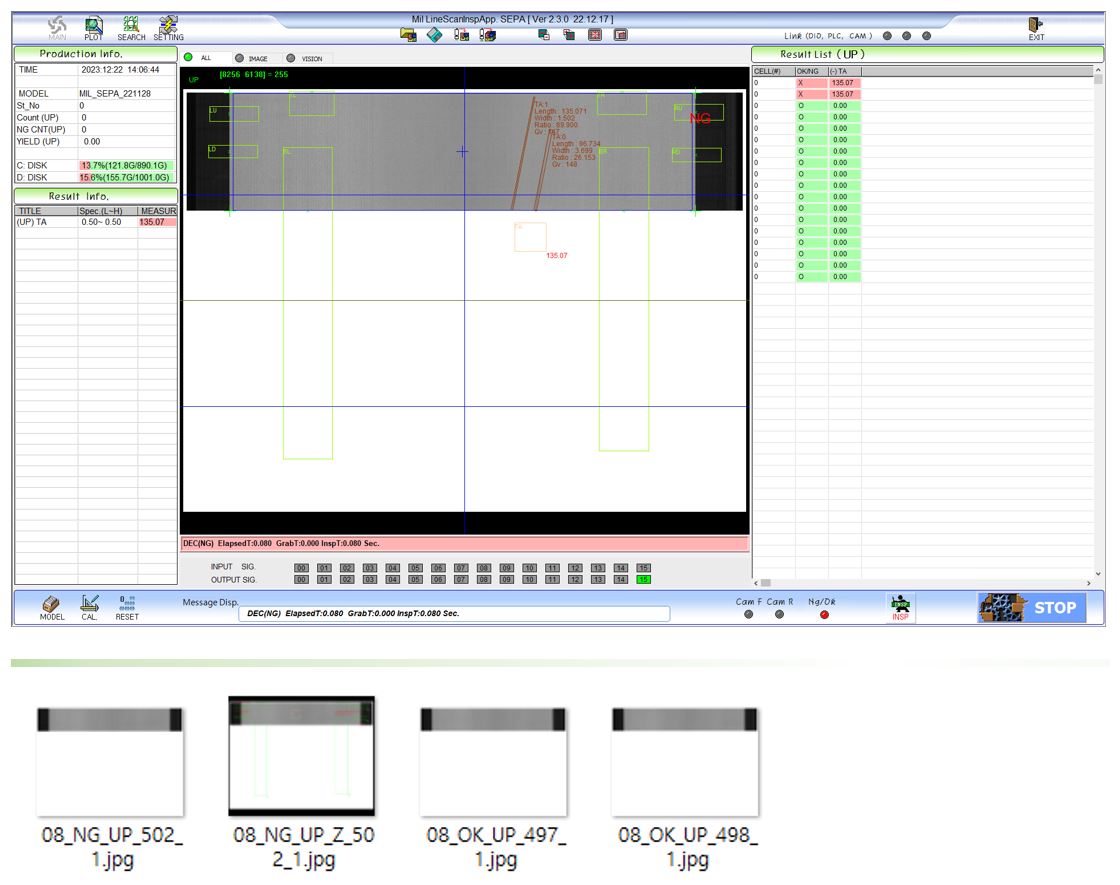

- Real-time image monitoring is possible
- Real-time graph output enables you to judge product trends
- OK, NG images can be saved and re-examined
- Store measured values DATA and output to Excel file
- Interworking with PLC
