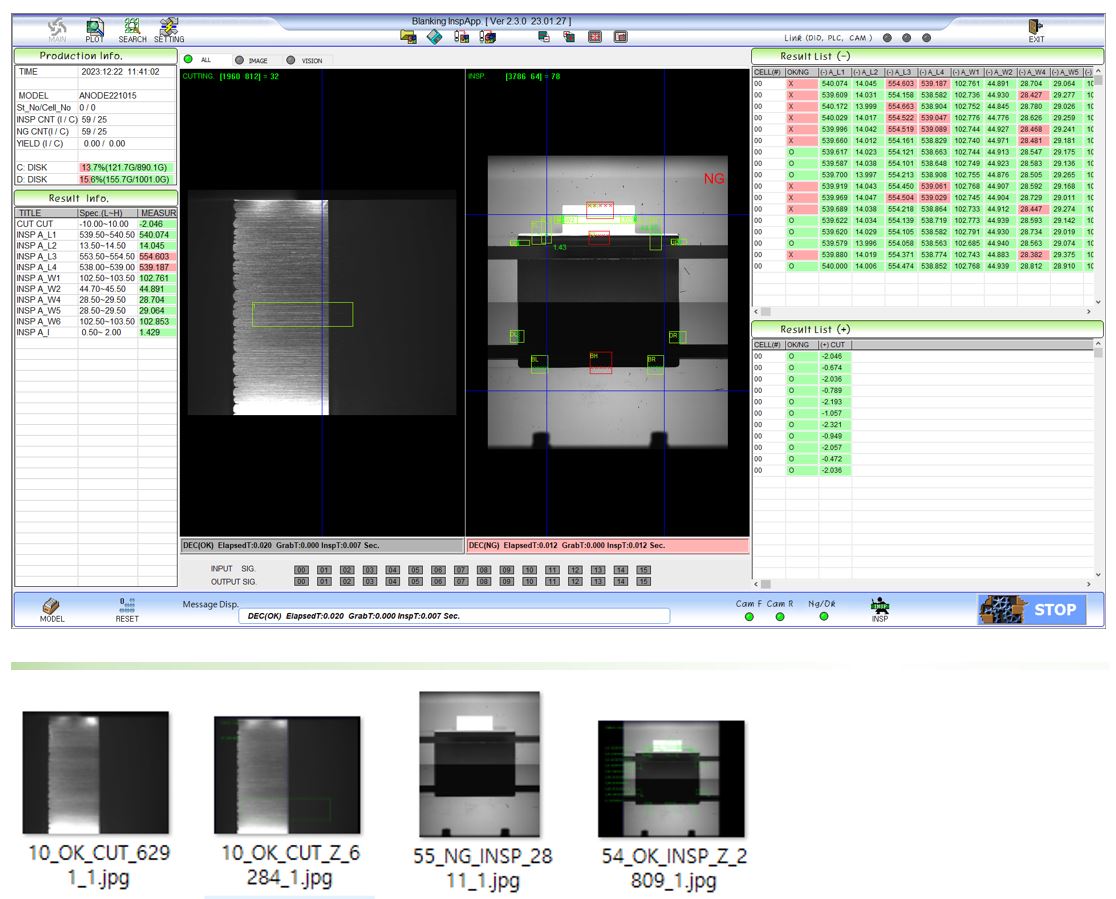

The tab position of the electrode before cutting and the appearance of the electrode after cutting Inspection is performed on the PLC and the tap position and the determination value of the electrode is used on the PLC a delivery system.
Optical System
- CAMERA : AREA CAMERA
- Resolution : 5M, 12M
- LIGHT : BAR LIGHT, BACK LIGHT, DOME LIGHT
- I/O Card : Input 16CH, Output 16CH
- PC OS : Windows10
Characteristic
- Ease of adding a production model
- Intuitive UI makes it easy for anyone to operate
- Real-time image monitoring is possible
- Real-time graph output enables you to judge product trends
- OK, NG images can be saved and re-examined
- Store measured values DATA and output to Excel file
- Interworking with PLC
