HalfCell on the electrode loaded during the battery assembly process Vision system that corrects and stacks on electrodes.
Optical System
- CAMERA : AREA CAMERA
- Resolution : 12M
- LIGHT : BAR LIGHT, BAK LIGHT
- I/O Card : Input 16CH, Output 16CH
- PC OS : Windows10
Characteristic
- Ease of adding a production model

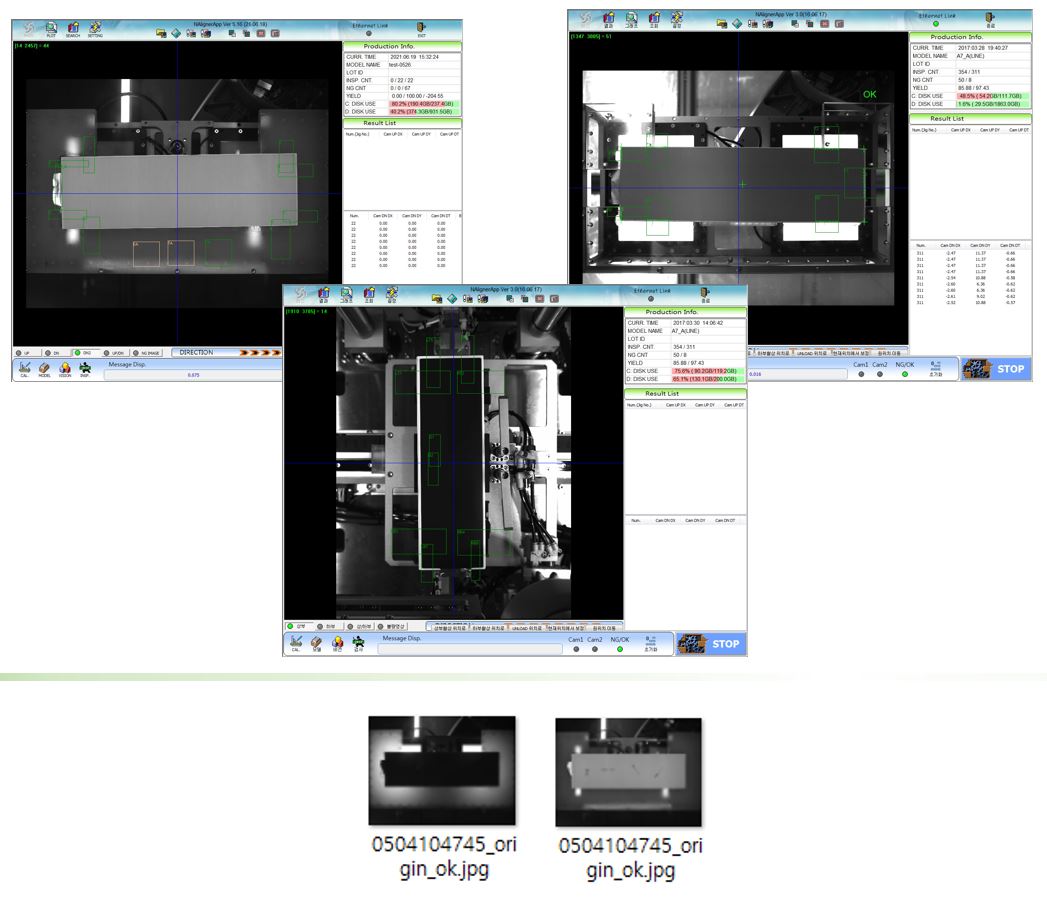

- Intuitive UI makes it easy for anyone to operate
- Real-time image monitoring is possible
- Real-time graph output enables you to judge product trends
- OK, NG images can be saved and re-examined
- Store measured values DATA and output to Excel file
- Interworking with PLC
