All-Solid Polymer Battery Dimensions and Appearance Inspection

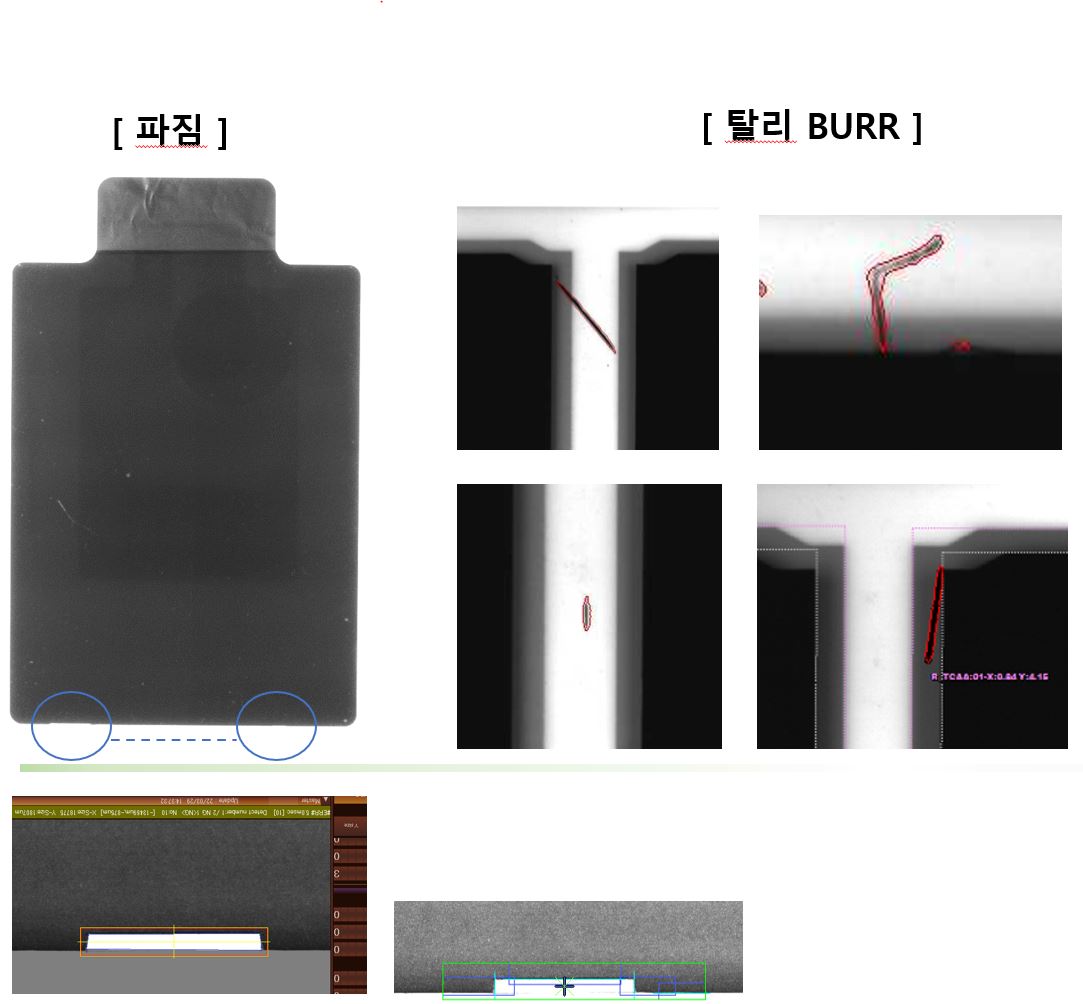

A vision to check the condition after cutting in all-solid-state batteries Examination of each segment dimensions, defects (tali and burr)

Optical System

- CAMERA : AREA CAMERA

- Resolution: 25M, 25M

- LIGHT : Flat Dome & Bar Light

- I/O Card : Input 16CH, Output 16CH

- PC OS : Windows10

Characteristic

- Ease of adding a production model

- Intuitive UI makes it easy for anyone to operate

- Real-time image monitoring is possible

- Real-time graph output enables you to judge product trends

- OK, NG images can be saved and re-examined

- Store measured values DATA and output to Excel file

- Interworking with PLC
